Enamelled Range water heater

BE10

Code Power Time
BE10050 550 W - 230 V - 2.4 A 38 min
BE10080 850 W - 230 V - 3.7 A 25 min
BE10120 1250 W - 230 V - 5.4 A 18 min

T: 15° → 45° - ΔT = 30°

Request Info

Info request module

Please, fill the module on any of its fields.

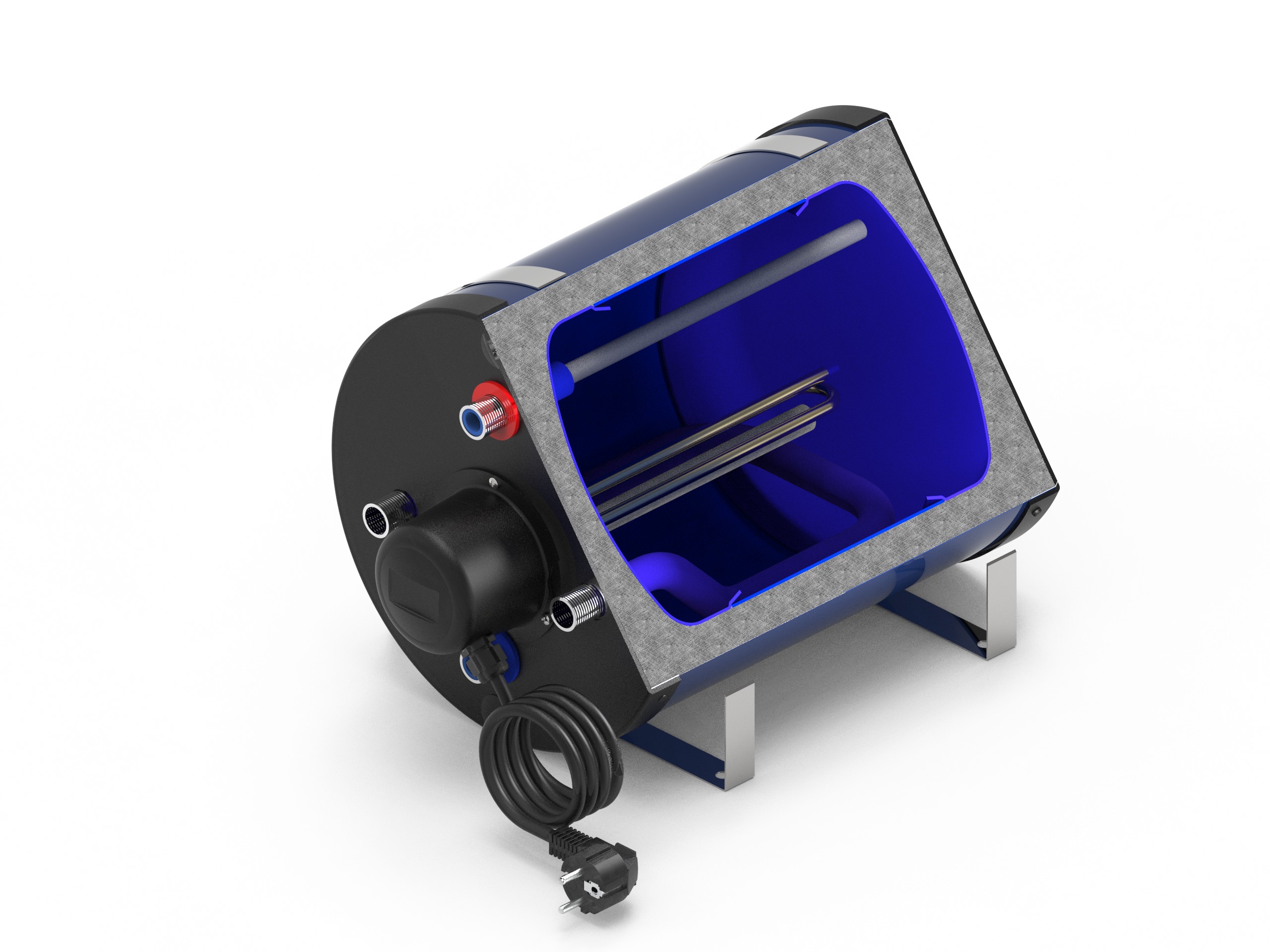

Components

  • heat insulation by means of closed cell expanded polyurethane foam (HFC, CFC, HCFC and HFA free)
  • electrical heating elements are available in Incoloy at 550, 850 and 1250 W allowing hot water production when engine heat is not available
  • adjustable safety thermostat
  • pressure relief and non-return valve
  • power supply cable as standard
  • Enamelled steel tank, internally coated according to DIN 4753
  • enamelled heat exchanger: thanks to its large surface it can produce a large output of hot water
  • the external casing is made of pre painted aluminium, chosen because of its suitability for marine applications
  • AISI 304 stainless steel mounting brackets
  • magnesium anode: it protects the tank against galvanic corrosion
  • drain tap

Specifications

Capacity L 10
Length mm 400
Width mm 270
Height mm 270
Length of packing mm 435
Width of packing mm 280
Height of packing mm 320
Empty weight kg 8.0
Gross weight kg 9.0
Pallet length mm 110
Pallet width mm 110
Pallet height mm 129
Max pressure kPa 700
Voltage V 230*
Frequency Hz 50
Water connections in 1/2

*120 V ~ on request

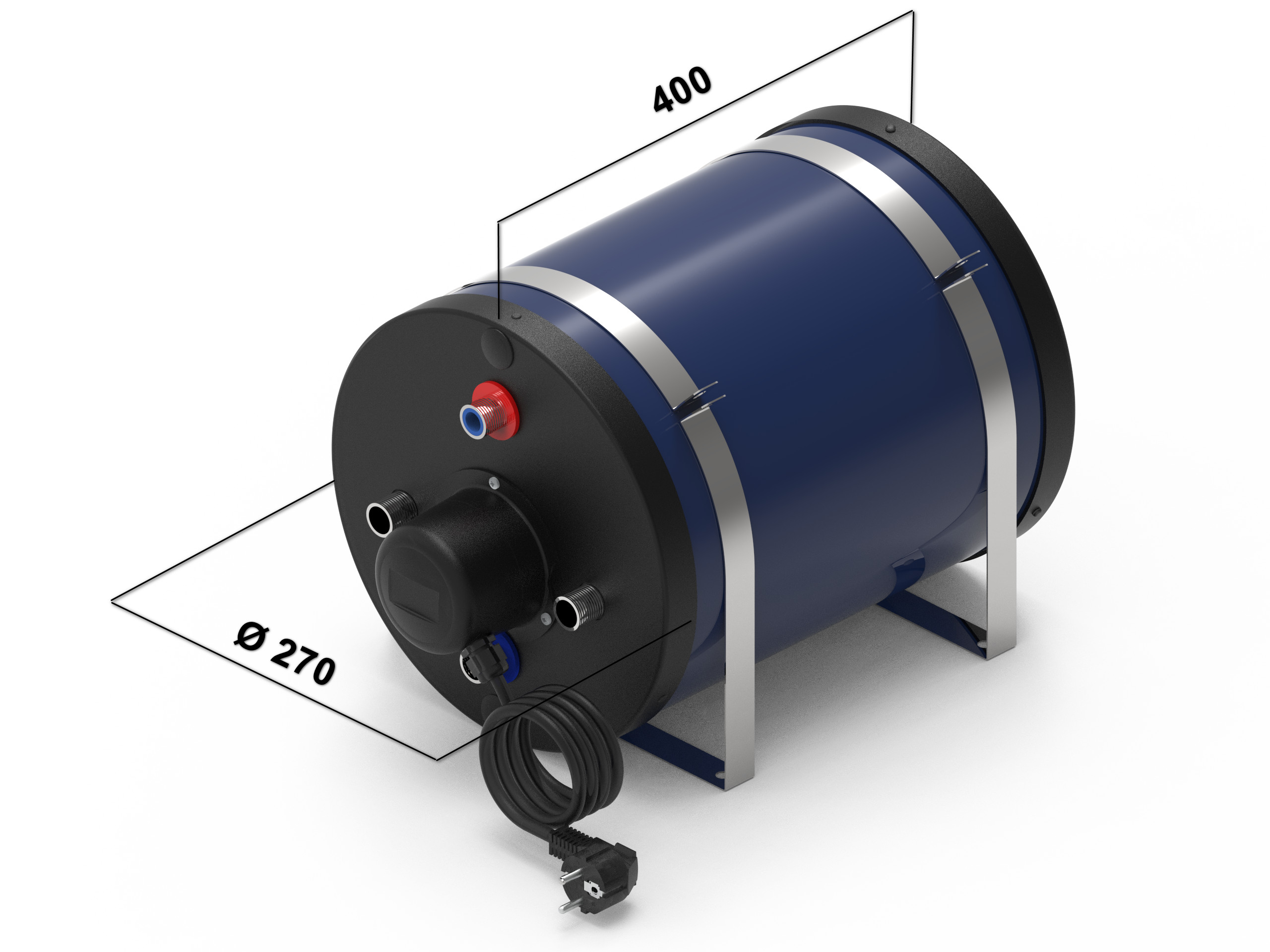

Dimensions

Accessories
