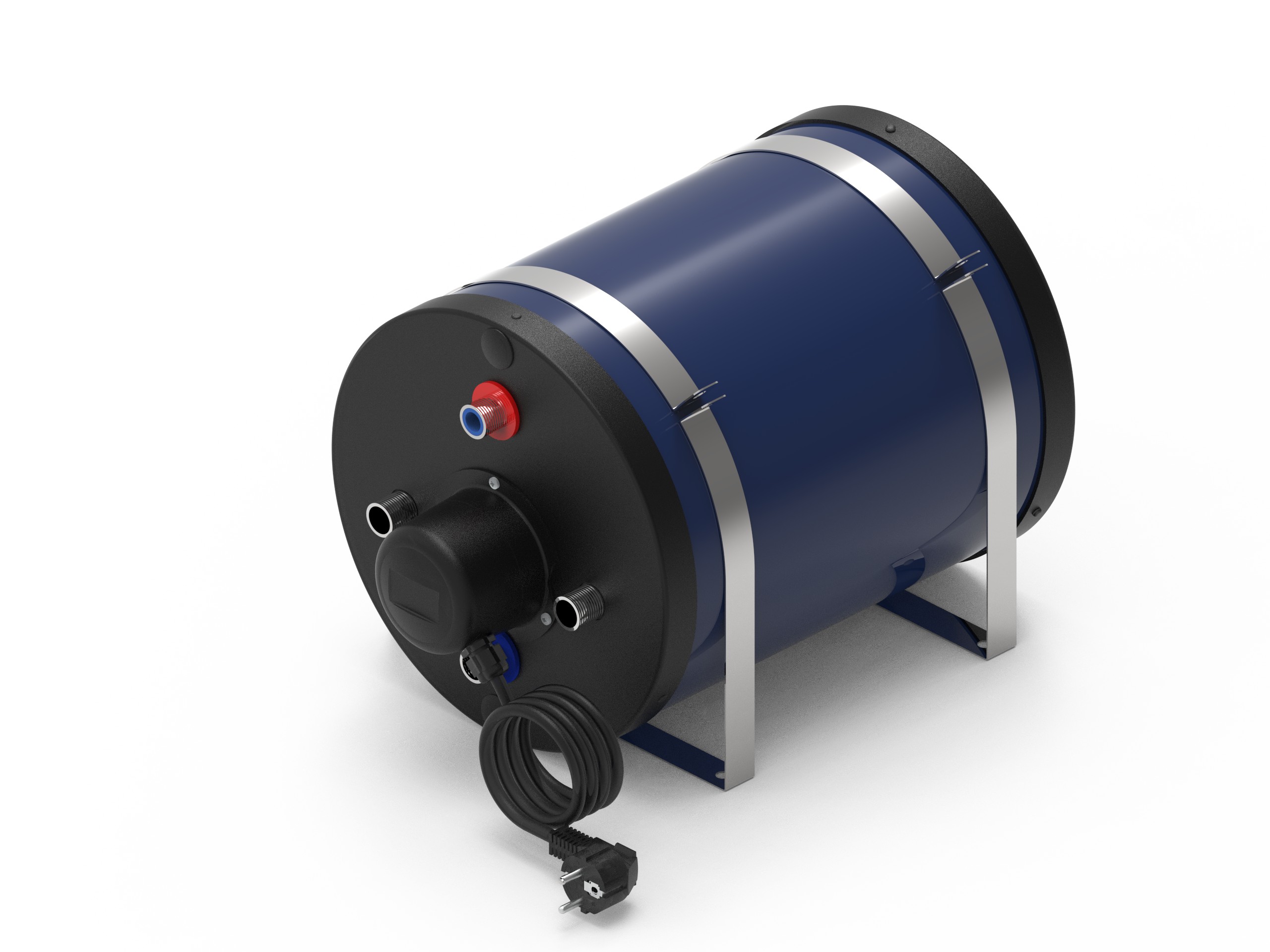

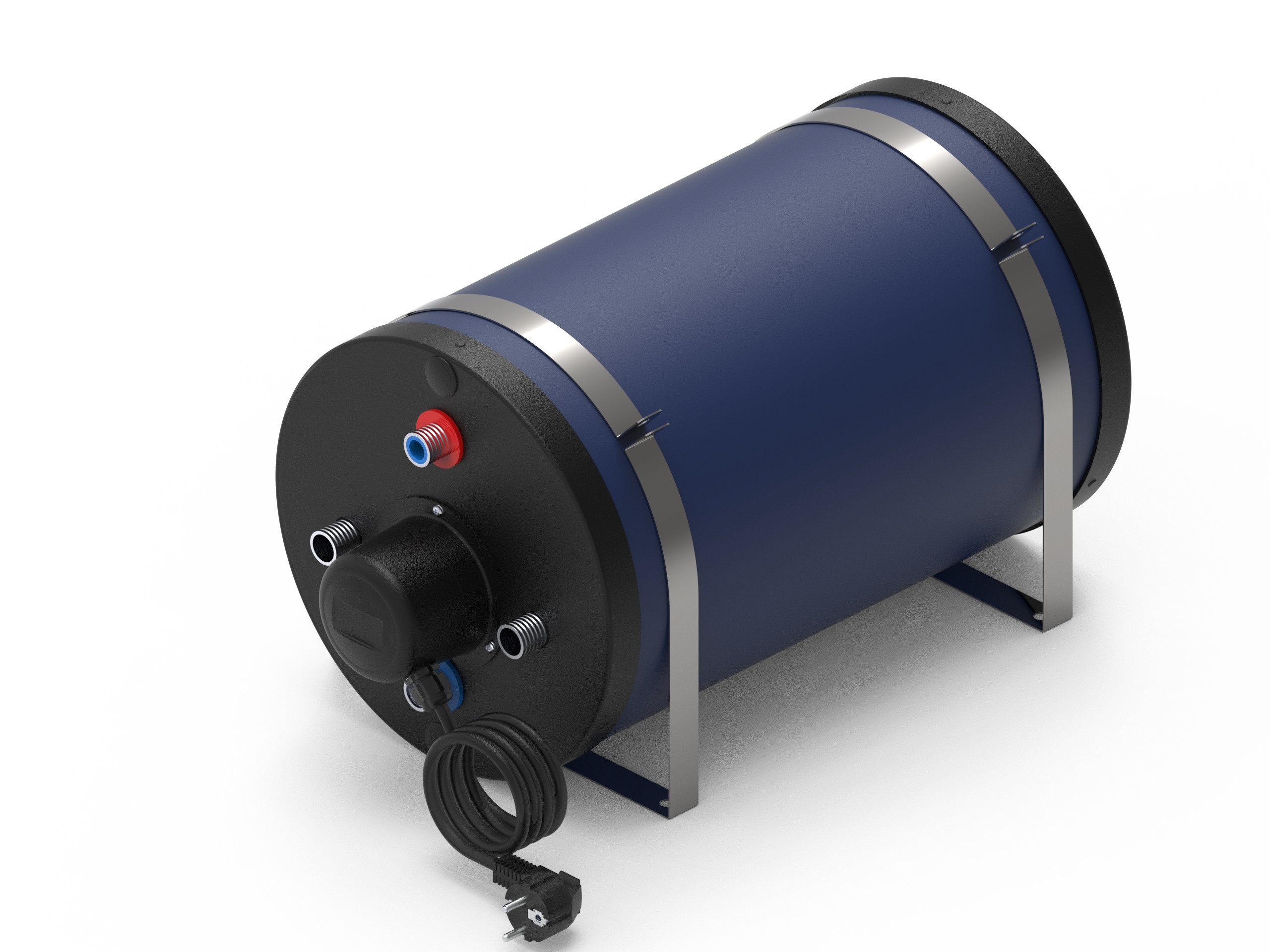

Enamelled Range water heater

BT60

Code Power Time
BT6005 550 W - 2.4 A 228 min
BT6008 850 W - 3.7 A 148 min
BT6012 1250 W - 5.4 A 100 min

T: 15° → 45° - ΔT = 30°

Request Info

Info request module

Please, fill the module on any of its fields.

Components

  • heat insulation by means of closed cell expanded polyurethane foam (HFC, CFC, HCFC and HFA free)
  • electrical heating elements are available in Incoloy at 550, 850 and 1250 W allowing hot water production when engine heat is not available
  • adjustable safety thermostat
  • pressure relief and non-return valve
  • power supply cable as standard
  • Enamelled steel tank, internally coated according to DIN 4753
  • enamelled heat exchanger: thanks to its large surface it can produce a large output of hot water
  • the external casing is made of pre painted aluminium, chosen because of its suitability for marine applications
  • AISI 304 stainless steel mounting brackets
  • magnesium anode: it protects the tank against galvanic corrosion
  • drain tap

Specifications

Capacity L 60
Length mm 1105
Width mm 320
Height mm 323
Length of packing mm 365
Width of packing mm 365
Height of packing mm 1140
Empty weight kg 19.0
Gross weight kg 21.4
Pallet length mm 110
Pallet width mm 110
Pallet height mm 127
Pieces per pallet 9
Max pressure kPa 700
Voltage V 230*
Frequency Hz 50
Water connections in 1/2

*120 V ~ on request
